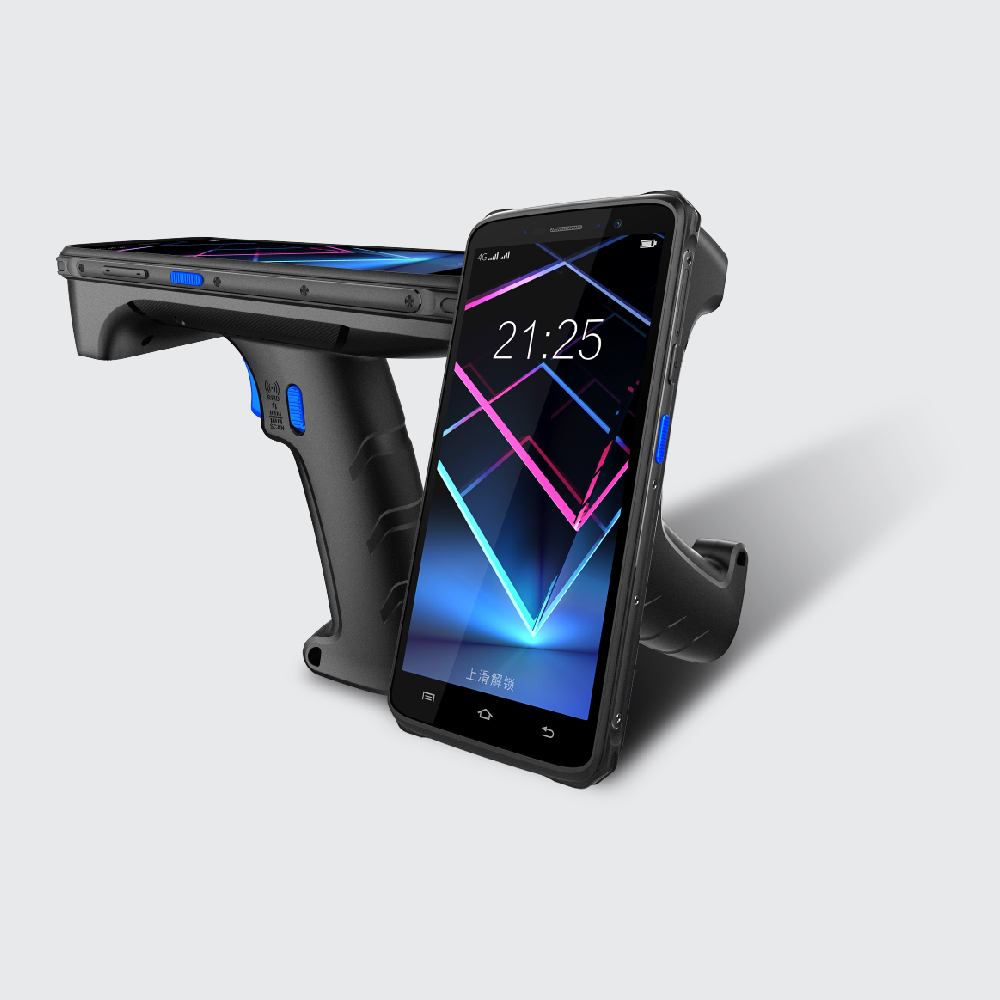

R20K UHF RFID Reader

Second Generation Certificate Data Acquisition Terminal
Android UHF RFID & LoRa Handheld Terminal
Second-generation architecture · Multi-network data transmission
Android 9 / Android 14 | 5.45” Display | 6GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ LoRa powered by Semtech LLCC68 RF chip
⭐ Circular polarization 4dBi antenna, RFID read & write supported
⭐ 10000mAh large battery · 18W fast charging

FARSET-R20K is a second-generation certified data acquisition terminal combining UHF RFID and LoRa communication, designed for secure identification, long-range transmission, and reliable field data collection.

Get Quote

R20K UHF RFID Reader

Second Generation Certificate Data Acquisition Terminal
Android UHF RFID & LoRa Handheld Terminal
Second-generation architecture · Multi-network data transmission
Android 9 / Android 14 | 5.45” Display | 6GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ LoRa powered by Semtech LLCC68 RF chip
⭐ Circular polarization 4dBi antenna, RFID read & write supported
⭐ 10000mAh large battery · 18W fast charging

FARSET-R20K is a second-generation certified data acquisition terminal combining UHF RFID and LoRa communication, designed for secure identification, long-range transmission, and reliable field data collection.

Get Quote

R20K UHF RFID Reader

Second Generation Certificate Data Acquisition Terminal
Android UHF RFID & LoRa Handheld Terminal
Second-generation architecture · Multi-network data transmission
Android 9 / Android 14 | 5.45” Display | 6GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ LoRa powered by Semtech LLCC68 RF chip
⭐ Circular polarization 4dBi antenna, RFID read & write supported
⭐ 10000mAh large battery · 18W fast charging

FARSET-R20K is a second-generation certified data acquisition terminal combining UHF RFID and LoRa communication, designed for secure identification, long-range transmission, and reliable field data collection.

Get Quote
Get Quote
Play Video
R20
R20
R20

Perfect performance    Fast running speed    Great intelligence

Features

Android 9/14

UHF RFID (Long-range Reading)

Bluetooth 5.0

LoRa Communication

SE6100-2D & Honeywell N6603 & Honeywell N6703

Professional 1D/2D Barcode Scanner

13MP Rear Camera (PDAF)

IP67 Protection

5m Drop Resistance

10000mAh Large Battery

Industy

Logistics & Warehousing

retail

medical

public

Manufacturing

Details

R20_01
R20_02
R20_03
R20_04

Specifcation

System Configuration

Processor :MT6762V/CA(Octa-core，2.0GHz)

Operating System :Android 9.0

Memory : 64 GB ROM+4 GB RAM(Standard)

Expansion Slot :Micro SD card (Up to 64GB SDHC）

Display : 5.45’，720*1440, HD+ 18:9，LTPS

Touch Screen :  GFF 10 touch, Glove mode/Wet hand operation

Front Camera :5MP（FF）

Camera :13MP, PDAF, with flash LED

Touch Cover : Tempered glass

Keypad : Three virtual keys: Menu , Home , Back; Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-)

Battery Capacity:5000mAh build-in lithium polymer battery，discharge temperature-20~60℃

Fast charge: 9V/2A

Prompt : Spec 12*17*2.5（Dual speaker）

Reminder :Vibration prompt /LED prompt/audio prompt

Vibration motor :Built-in vibration motor

Sensor:G-sensor/Proximity sensor/Light sensor/ Gyroscope/geomagnetic sensor

Data Transmission

Wireless wide area network (Network frequency)：GSM：B2/B3/B5/B8; CDMA/CDMA-EVDO：BC0; TD-SCDMA：B34/B39; WCDMA：B1/B8; TDD-LTE Bands：B34/B38/B39/B40/B41; LTE_FDD/TDD Bands：B1/B3/B8; CA: B3+B3 2CA；B1+B3 2CA

Wireless wide area network (data business)： GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE

Wireless LAN：Wi-Fi 802.11 a/b/g/n/ac (Dual-band：2.4GHz+5GHz)

Bluetooth：Bluetooth 5.0

GPS：Support GPS/AGPS/Glonass/BDS

NFC

Frequency : 13.56 MHz

Reading Distance : 13.56 MHz

Protocol : ISO14443A/ISO14443B

Special Feature : Support contactless CPU card, support 2 generation ID card read

Used Environment

Operating Temperature： -20~55°

Storage Temperature： -40~60°

Humidity：  0~95%

Drop specifications： Concrete1.5M

IP Grade：IP65

ESD：±12 KV air discharge, ±8 KV conductive discharge

Structure Parameters

Dimension (LxWxD):158mm×76mm×13.7mm

Weight: 227g

Scanning Engine

Scanning engine : Professional scanner SE6100-2D; (Developed together with Zebra); Honeywell  scan Engine N6703

Optical Resolution : 1280*800 pixes / 844*640 pixes

Scanning accuracy : ≥3mil  , Code 39/128

Scan Angles : Tilt:360°，Pitch:±45°，Skew:±60°

Laser Safety Level : Class II

Development Tool

Development tool： Android SDK

Support language： Java

Accessories

Standard :Power adapter、USB cable、tempered glass screen protector

Input And Output Interface

USB Port : Support contactless CPU card, support 2 generation ID card read

Charger Port : Support contactless CPU card, support 2 generation ID card read

OTG : Support

Accessories Display
