R20 UHF RFID Reader

Professional UHF Data Acquisition Terminal
Android UHF RFID Handheld Terminal
Octa-core 2.0GHz Processor · Long-range RFID Reading

Android 9 / Android 14 | 5.45” Display | 4GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ Top UHF RFID engine
⭐ Circular polarization 4dBi antenna, over 12m reading range
⭐ 10000mAh large battery · 18W fast charging

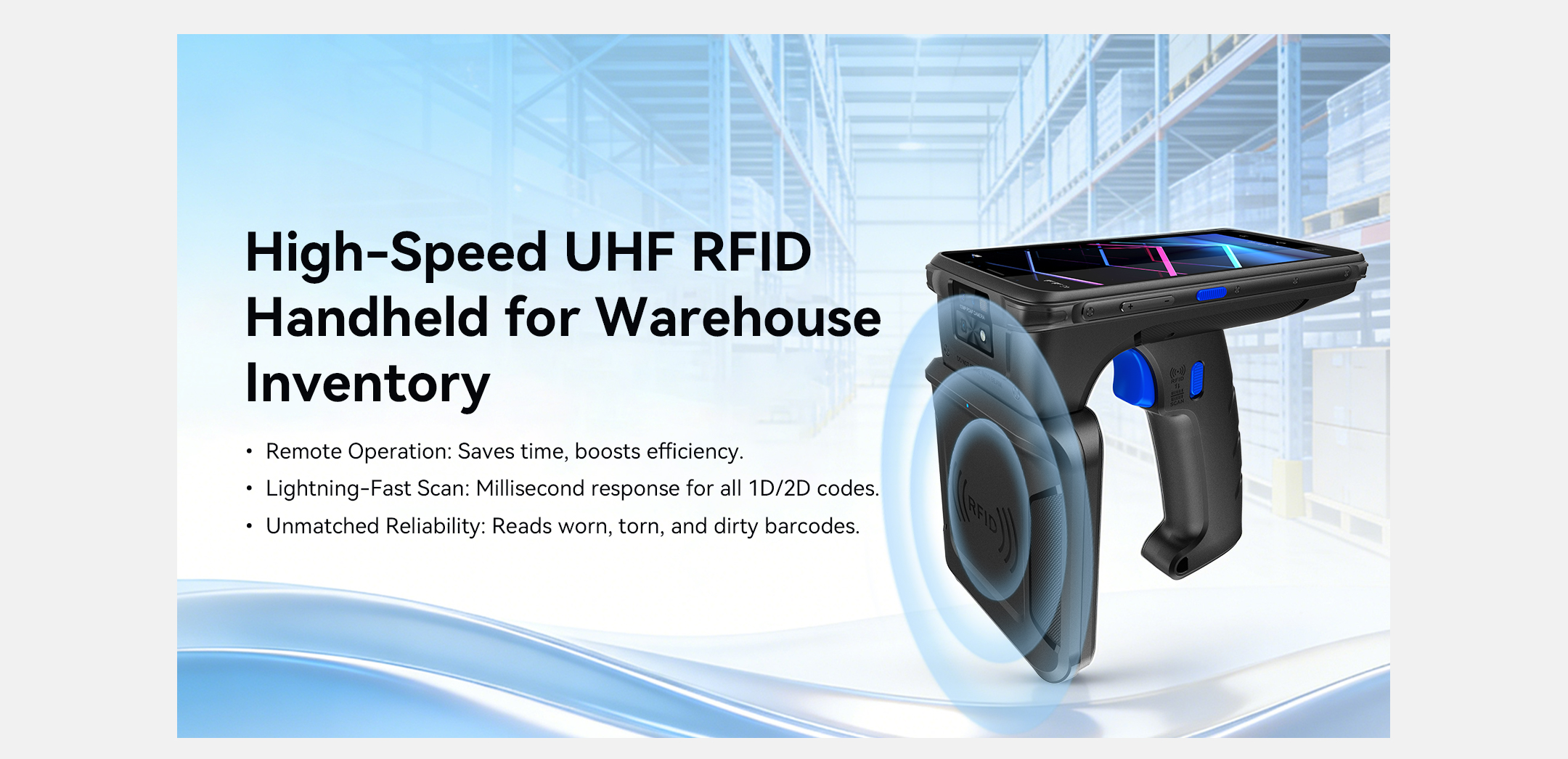

FARSET-R20 is a professional UHF RFID handheld terminal designed for long-range tag reading, large-scale inventory counting, and asset management, delivering stable performance and extended operating time.

Get Quote

R20 UHF RFID Reader

Professional UHF Data Acquisition Terminal
Android UHF RFID Handheld Terminal
Octa-core 2.0GHz Processor · Long-range RFID Reading

Android 9 / Android 14 | 5.45” Display | 4GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ Top UHF RFID engine
⭐ Circular polarization 4dBi antenna, over 12m reading range
⭐ 10000mAh large battery · 18W fast charging

FARSET-R20 is a professional UHF RFID handheld terminal designed for long-range tag reading, large-scale inventory counting, and asset management, delivering stable performance and extended operating time.

Get Quote

R20 UHF RFID Reader

Professional UHF Data Acquisition Terminal
Android UHF RFID Handheld Terminal
Octa-core 2.0GHz Processor · Long-range RFID Reading

Android 9 / Android 14 | 5.45” Display | 4GB RAM | 64GB ROM | UHF RFID | 1D/2D Barcode Scanner | 10000mAh

⭐ Top UHF RFID engine
⭐ Circular polarization 4dBi antenna, over 12m reading range
⭐ 10000mAh large battery · 18W fast charging

FARSET-R20 is a professional UHF RFID handheld terminal designed for long-range tag reading, large-scale inventory counting, and asset management, delivering stable performance and extended operating time.

Get Quote
Get Quote
Play Video
R20
R20
R20

Perfect performance    Fast running speed    Great intelligence

Features

Android 9 / Android 14 OS

UHF RFID (Impinj Chip)

Bluetooth 5.0

Wi-Fi Dual Band (2.4G / 5G)

SE6100-2D & Honeywell N6603 & Honeywell N6703

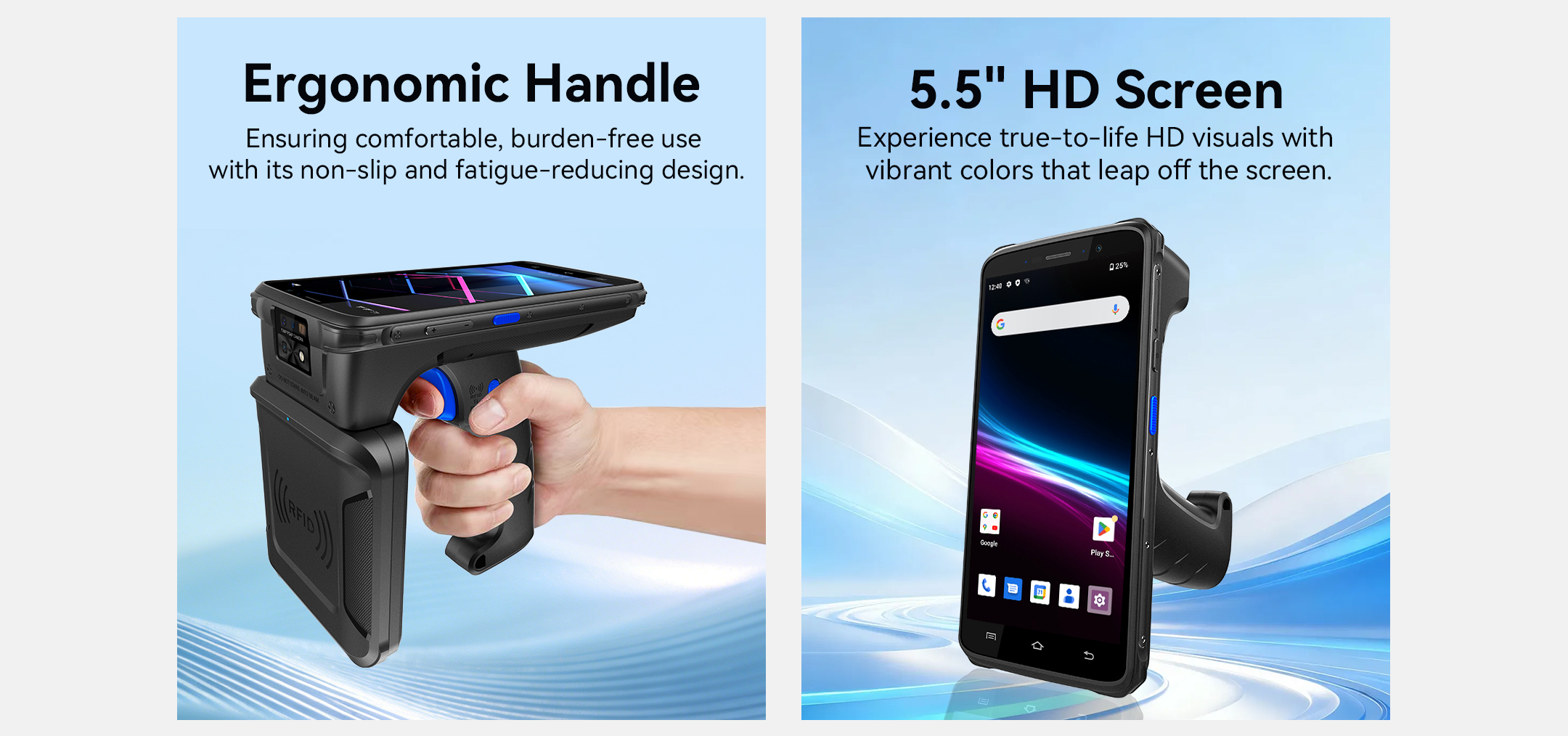

5.45” HD+ Display (720×1440)

13MP Rear Camera (PDAF)

IP67 Protection

1.5m Drop Resistance

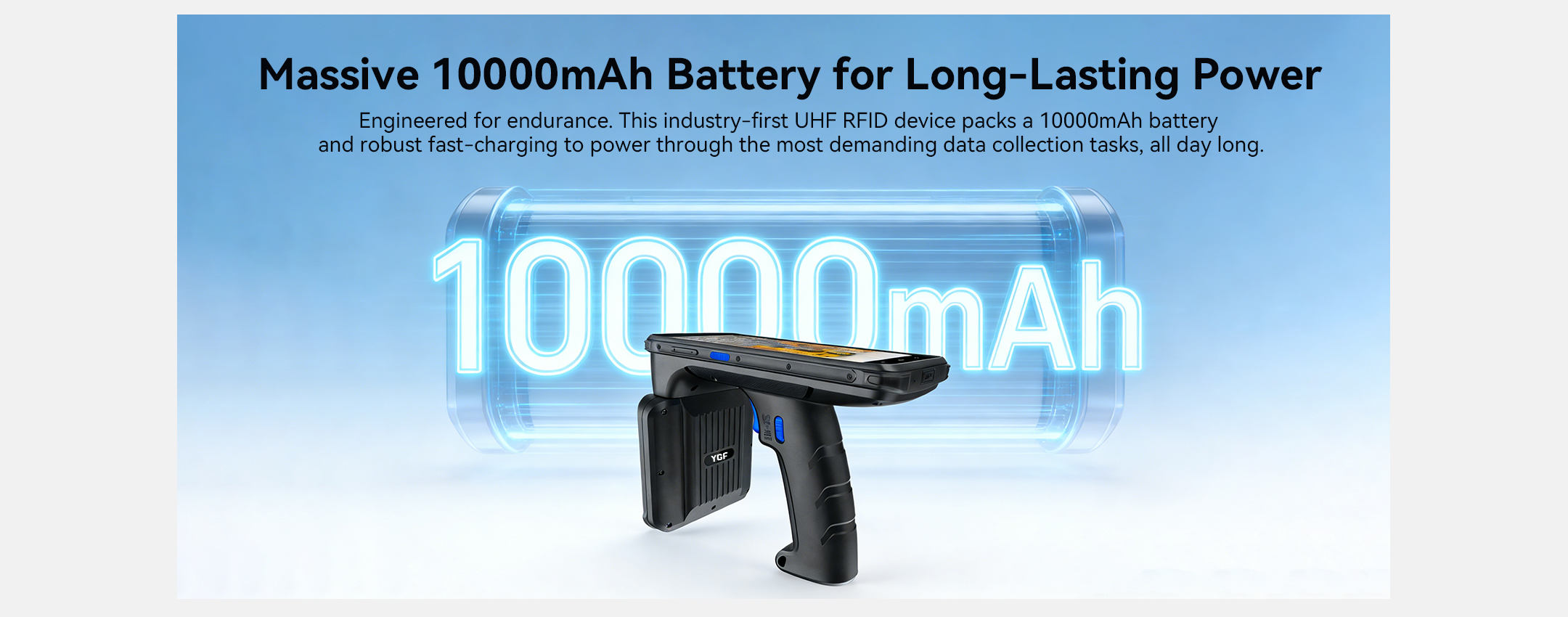

10000mAh Large Battery

Industy

Logistics & Warehousing

Retail

Medical

Public

Manufacturing

Details

R20_01
R20_02
R20_03
R20_04

Specifcation

System Configuration

Processor :MT6762V/CA(Octa-core，2.0GHz)

Operating System :Android 9.0

Memory : 64 GB ROM+4 GB RAM(Standard)

Expansion Slot :Micro SD card (Up to 64GB SDHC）

Display : 5.45’，720*1440, HD+ 18:9，LTPS

Touch Screen :  GFF 10 touch, Glove mode/Wet hand operation

Front Camera :5MP（FF）

Camera :13MP, PDAF, with flash LED

Touch Cover : Tempered glass

Keypad : Three virtual keys: Menu , Home , Back; Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-)

Battery Capacity:5000mAh build-in lithium polymer battery，discharge temperature-20~60℃

Fast charge: 9V/2A

Prompt : Spec 12*17*2.5（Dual speaker）

Reminder :Vibration prompt /LED prompt/audio prompt

Vibration motor :Built-in vibration motor

Sensor:G-sensor/Proximity sensor/Light sensor/ Gyroscope/geomagnetic sensor

Data Transmission

Wireless wide area network (Network frequency)：GSM：B2/B3/B5/B8; CDMA/CDMA-EVDO：BC0; TD-SCDMA：B34/B39; WCDMA：B1/B8; TDD-LTE Bands：B34/B38/B39/B40/B41; LTE_FDD/TDD Bands：B1/B3/B8; CA: B3+B3 2CA；B1+B3 2CA

Wireless wide area network (data business)： GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE

Wireless LAN：Wi-Fi 802.11 a/b/g/n/ac (Dual-band：2.4GHz+5GHz)

Bluetooth：Bluetooth 5.0

GPS：Support GPS/AGPS/Glonass/BDS

NFC

Frequency : 13.56 MHz

Reading Distance : 13.56 MHz

Protocol : ISO14443A/ISO14443B

Special Feature : Support contactless CPU card, support 2 generation ID card read

Used Environment

Operating Temperature： -20~55°

Storage Temperature： -40~60°

Humidity：  0~95%

Drop specifications： Concrete1.5M

IP Grade：IP65

ESD：±12 KV air discharge, ±8 KV conductive discharge

Structure Parameters

Dimension (LxWxD):158mm×76mm×13.7mm

Weight: 227g

Scanning Engine

Scanning engine : Professional scanner SE6100-2D; (Developed together with Zebra); Honeywell  scan Engine N6703

Optical Resolution : 1280*800 pixes / 844*640 pixes

Scanning accuracy : ≥3mil  , Code 39/128

Scan Angles : Tilt:360°，Pitch:±45°，Skew:±60°

Laser Safety Level : Class II

Development Tool

Development tool： Android SDK

Support language： Java

Accessories

Standard :Power adapter、USB cable、tempered glass screen protector

Input And Output Interface

USB Port : Support contactless CPU card, support 2 generation ID card read

Charger Port : Support contactless CPU card, support 2 generation ID card read

OTG : Support
