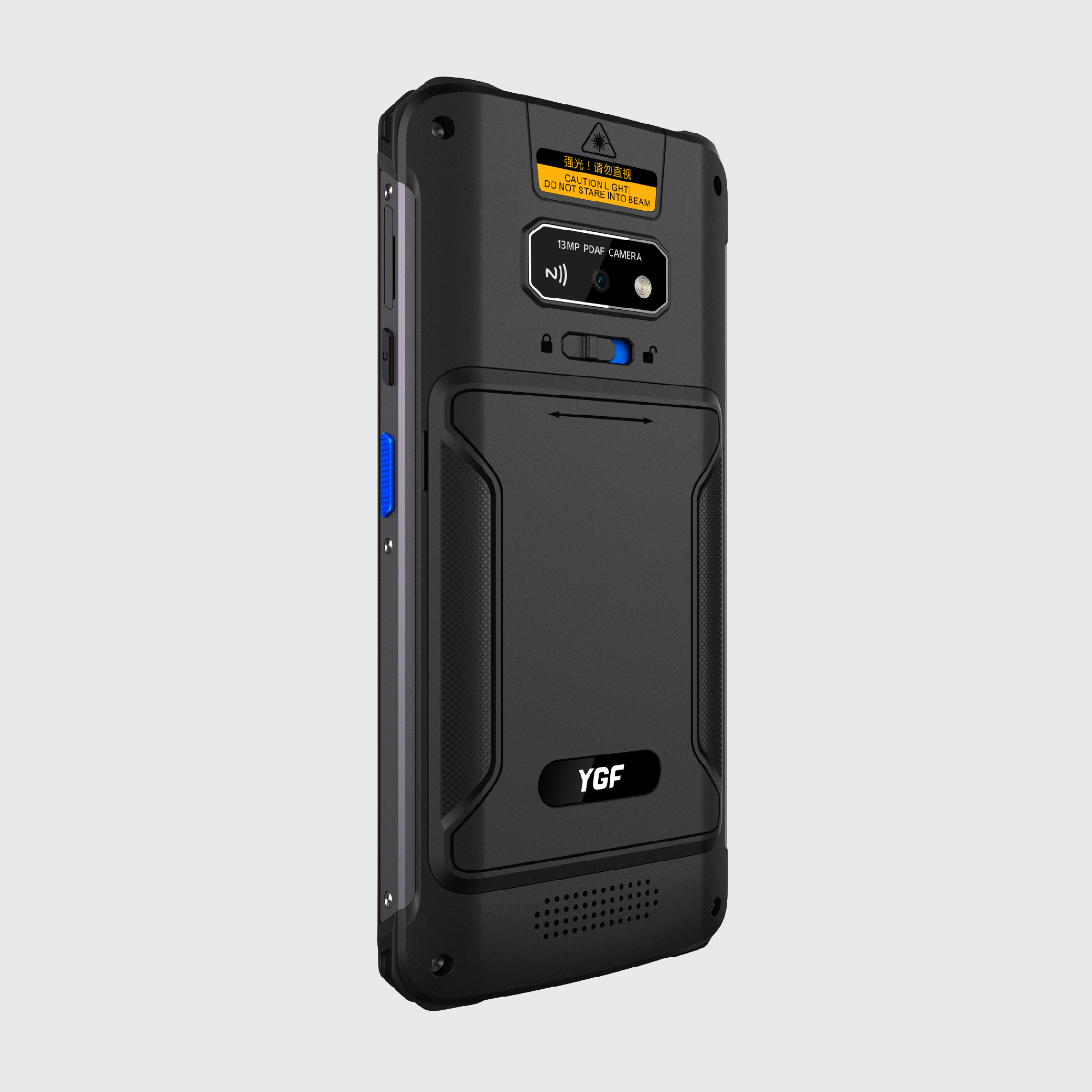

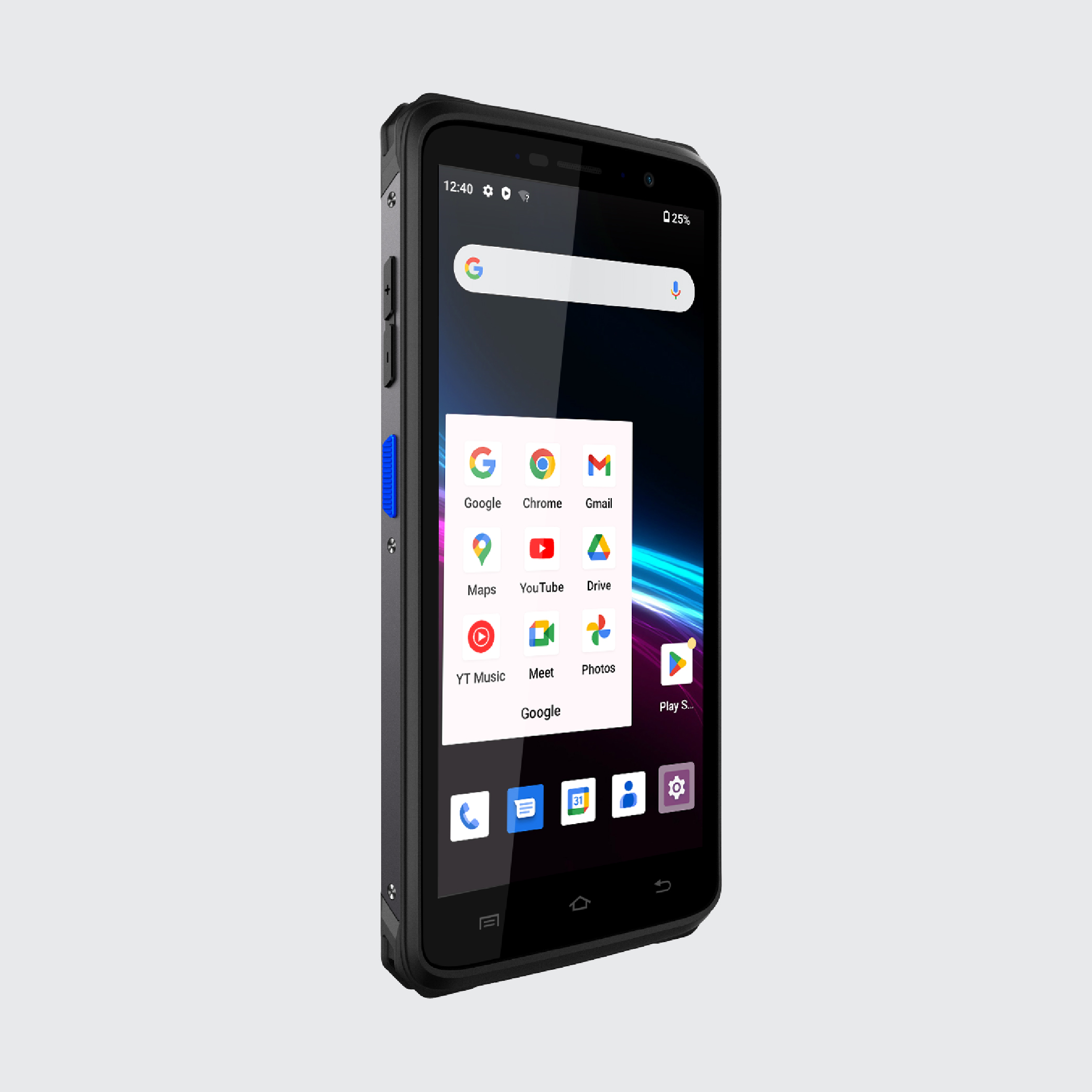

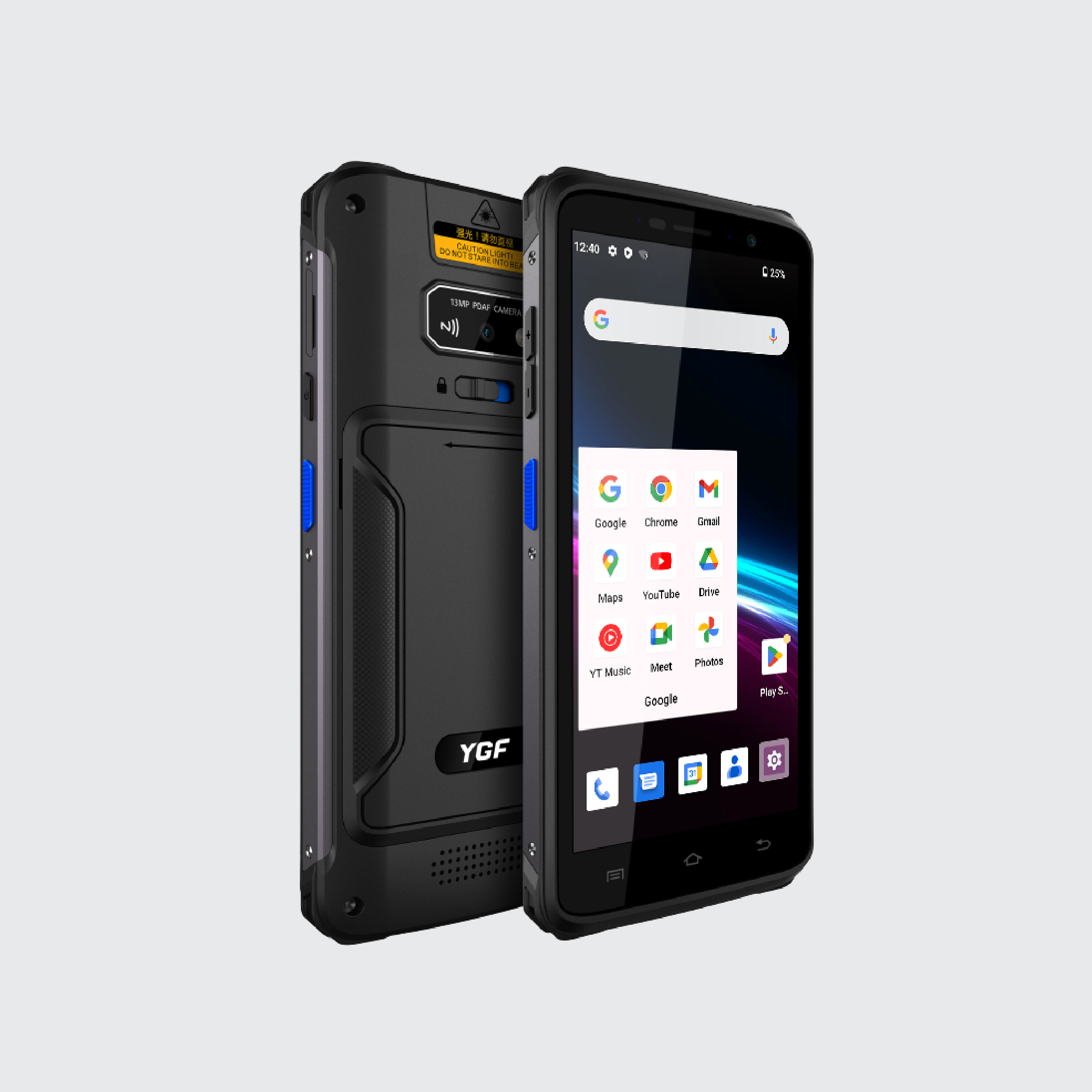

F20U Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure
Android Medical-Grade Smart PDA
Octa-core 2.2GHz Processor · Enhanced Performance

Android 12/14 | 5.5” Display | 6GB RAM | 64GB ROM | IP67 | 1D/2D Barcode Scanner | 5000mAh / 6000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design
⭐ 5000mAh / 6000mAh battery available for selection

F20U is an upgraded version of F20, delivering higher CPU performance and optional ultra-large battery capacity for longer and heavier-duty operations.

Get Quote

F20U Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure
Android Medical-Grade Smart PDA
Octa-core 2.2GHz Processor · Enhanced Performance

Android 12/14 | 5.5” Display | 6GB RAM | 64GB ROM | IP67 | 1D/2D Barcode Scanner | 5000mAh / 6000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design
⭐ 5000mAh / 6000mAh battery available for selection

F20U is an upgraded version of F20, delivering higher CPU performance and optional ultra-large battery capacity for longer and heavier-duty operations.

Get Quote

F20U Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure
Android Medical-Grade Smart PDA
Octa-core 2.2GHz Processor · Enhanced Performance

Android 12/14 | 5.5” Display | 6GB RAM | 64GB ROM | IP67 | 1D/2D Barcode Scanner | 5000mAh / 6000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design
⭐ 5000mAh / 6000mAh battery available for selection

F20U is an upgraded version of F20, delivering higher CPU performance and optional ultra-large battery capacity for longer and heavier-duty operations.

Get Quote
Get Quote
Play Video
F20U
F20U

Comprehensive upgrade    Depth optimization of scanning performance

Features

Android 12 / Android 14 OS

NFC (Optional)

BT 5.0

Wi-Fi Dual Band (2.4G / 5G)

SE6100-2D & Honeywell N6603 & Honeywell HS7 & Zebra SE4100

5.45” HD+ Display (720×1440)

13MP Rear Camera

IP67 Protection

1.5m Drop Resistance

5000mAh

Industy

Logistics & Warehousing

Retail

Medical

Public

Manufacturing

Details

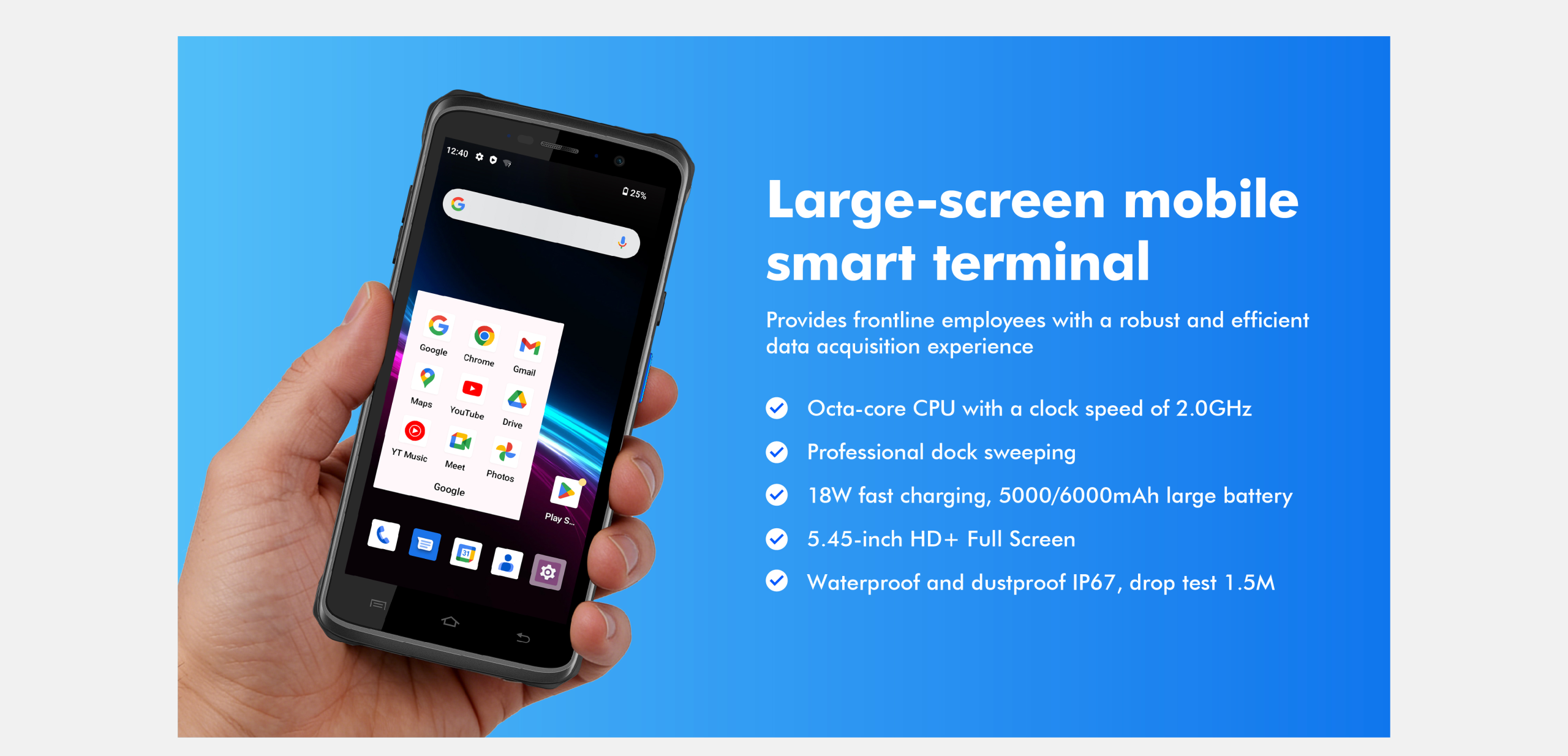

F20U_01

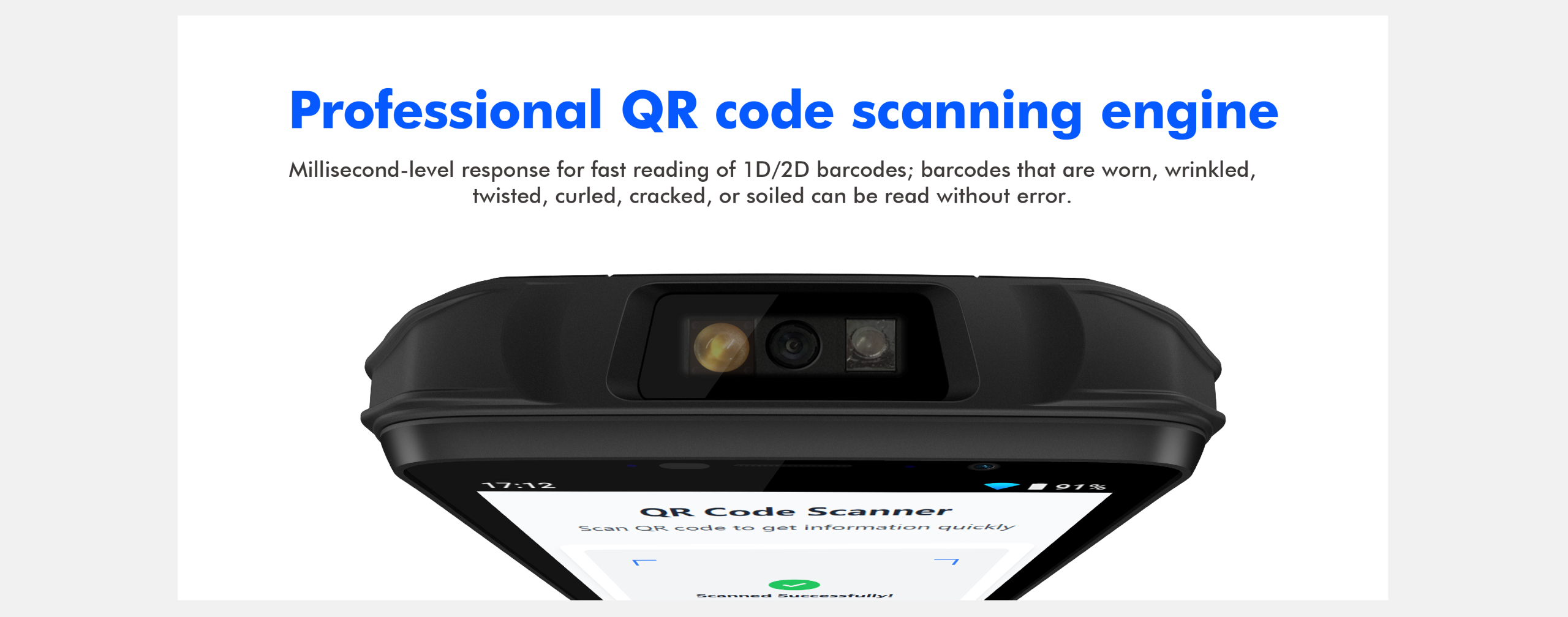

F20U-detail

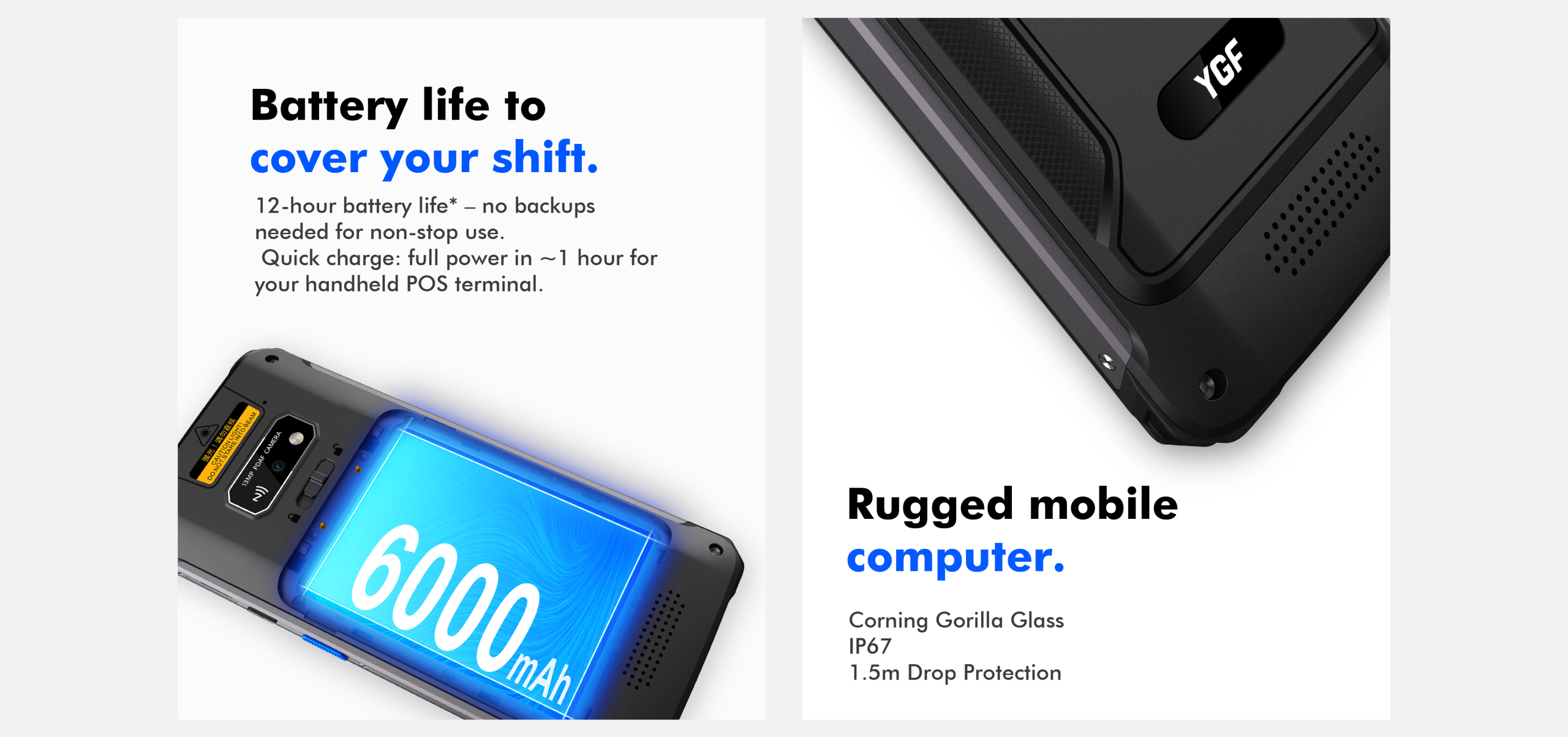

F20U_03
F20U_04

Specifcation

System Configuration

Processor : MT8781(Octa-core，2.2GHz，6nm)

Operating System : Android 12

Memory : 64 GB ROM+6GB RAM(Standard)/128+8

Expansion Slot : 5.5’ ，720*1440, HD+ 18:9，LTPS

Display : 5.45’，720*1440, HD+ 18:9，LTPS

Touch Panel : GFF 10 touch, Glove mode/Wet hand operation

Front Camera : 5MP（ FF）

Rear Camera : 13MP, PDAF, with flash LED

Touch Glass : Tempered glass

Keypad : Three virtual keys: Menu , Home , Back; Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-)

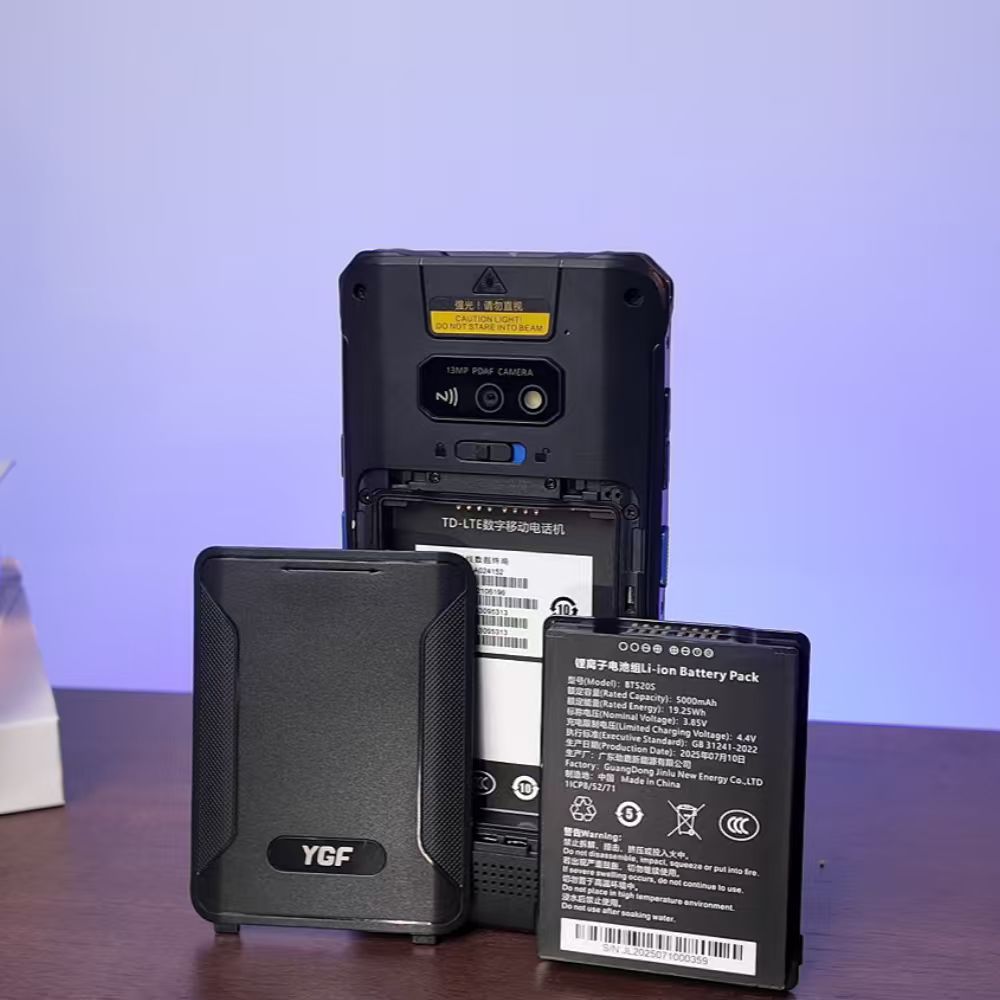

Battery : Capacity : 5000mAh  lithium polymer battery， discharge temperature-20~60℃; Fast charge : 9V/2A

Speaker : Spec : 12*17*2.5（ Dual speaker）

Prompt : Vibration prompt /LED prompt/audio prompt

Vibration : Built-in vibration motor

Sensor : G-sensor/Proximity sensor/Light sensor/ Gyroscope/geomagnetic sensor

Data Transmission

Wireless WAN (Network frequency）: GSM：B2/B3/B5/B8; CDMA/CDMA-EVDO：BC0; TD-SCDMA：B34/B39; WCDMA：B1/B8; TDD-LTE Bands：B34/B38/B39/B40/B41; LTE_FDD/TDD Bands：B1/B3/B8; CA: B3+B3  2CA；B1+B3 2CA

Wireless WAN (Data Service）: GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE

Wireless LAN : Wi-Fi 802.11 a/b/g/n/ac; (Dual-band：2.4GHz+5GHz)

Bluetooth : Bluetooth 5.0

GPS : Support GPS/AGPS/Glonass/BDS

NFC

Frequency : 13.56 MHz

Reading Distance : Within 2cm

Protocol : ISO14443A/ISO14443B

Special Feature : Support contactless CPU card, support 2 generation ID card read

Used Environment

Operating Temp : -20~55°

Storage Temp : -40~60°

Humidity :  0~95%

Drop Specification : Concrete1.5M

IP Grade : IP67

ESD : ±12 KV air discharge, ±8 KV conductive discharge

Structure Parameters

Dimension(LxWxD) : 158mm×76mm×13.7mm

Weight（g） : 248g

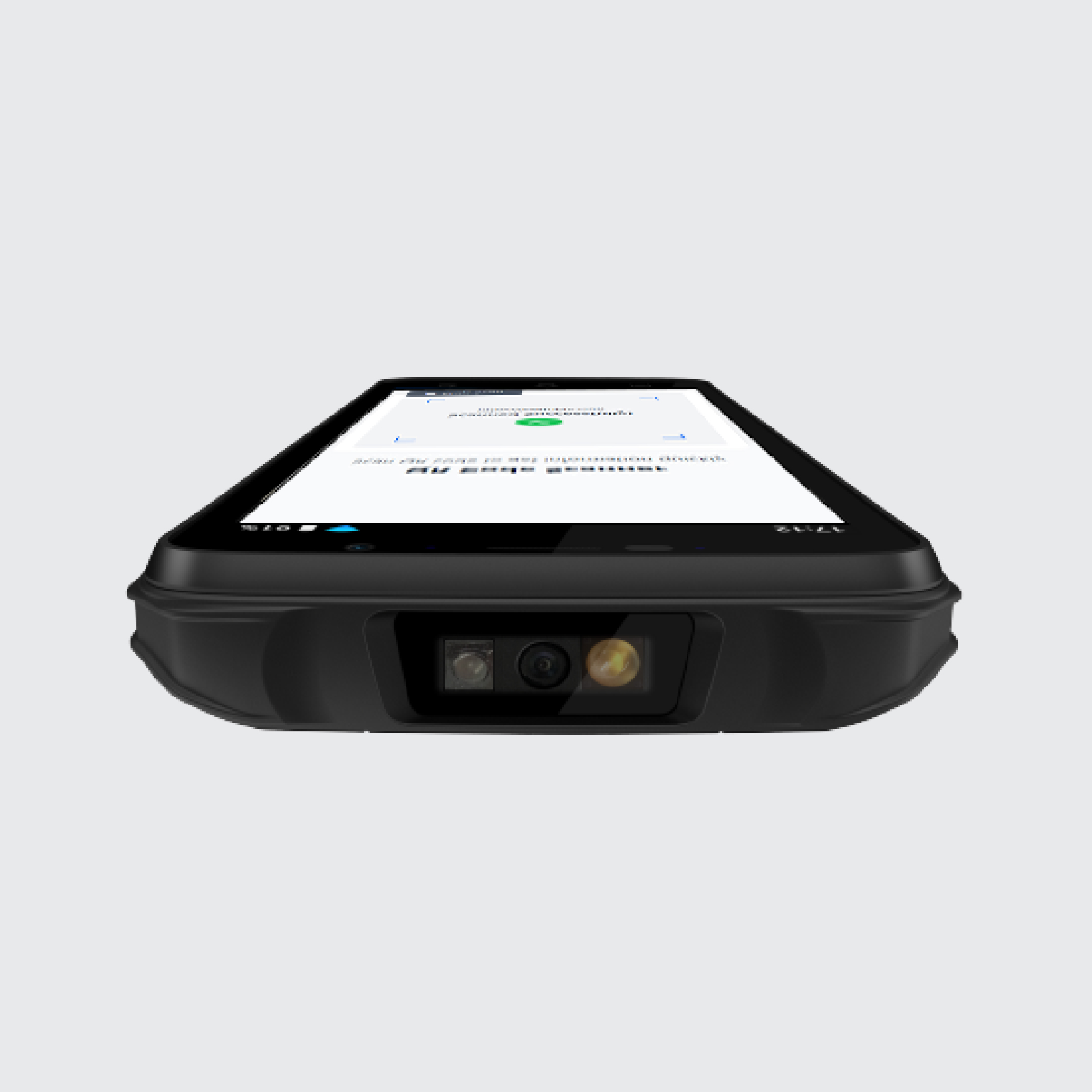

Scanning Engine

Scan engine : Professional scanner SE6100-2D / (optional) Honeywell  scan Engine N6703/6603

Optical resolution : 1280*800 pixes / 844*640 pixes

Scan precision : ≥3mil  , Code 39/128

Scan Angles : Tilt:360°，Pitch:±45°，Skew:±60°

Laser Safety Grade : Class II

Development Tool

Developing Tool : Android SDK

Supported language : Java

Accessories

Standard : Power adapter、USB cable、tempered glass screen protector

Input And Output Interface

USB Port : 1 PCS , Type-C USB waterproof port

Charger Port : 1 PCS , Type-C USB waterproof port

OTG : Support
