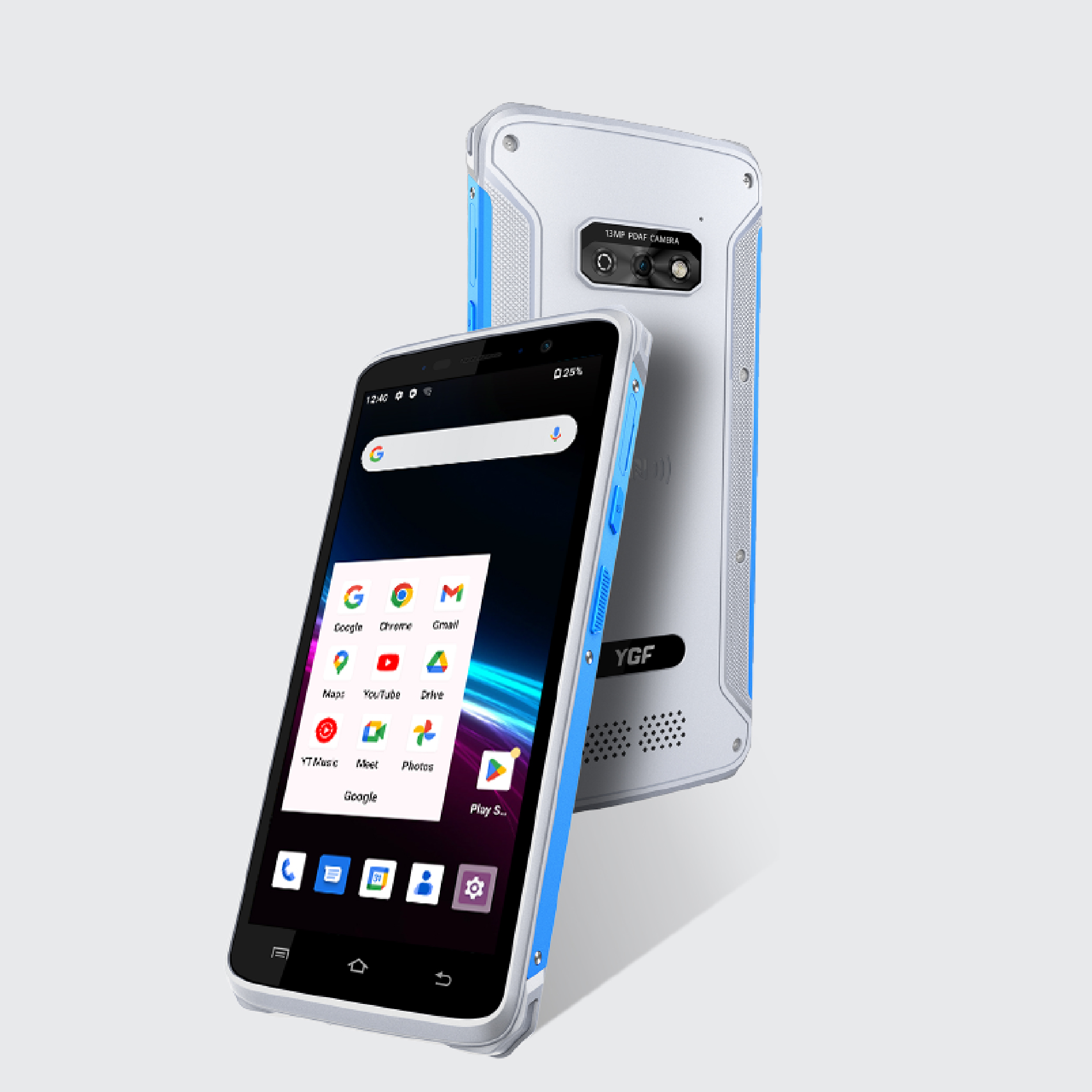

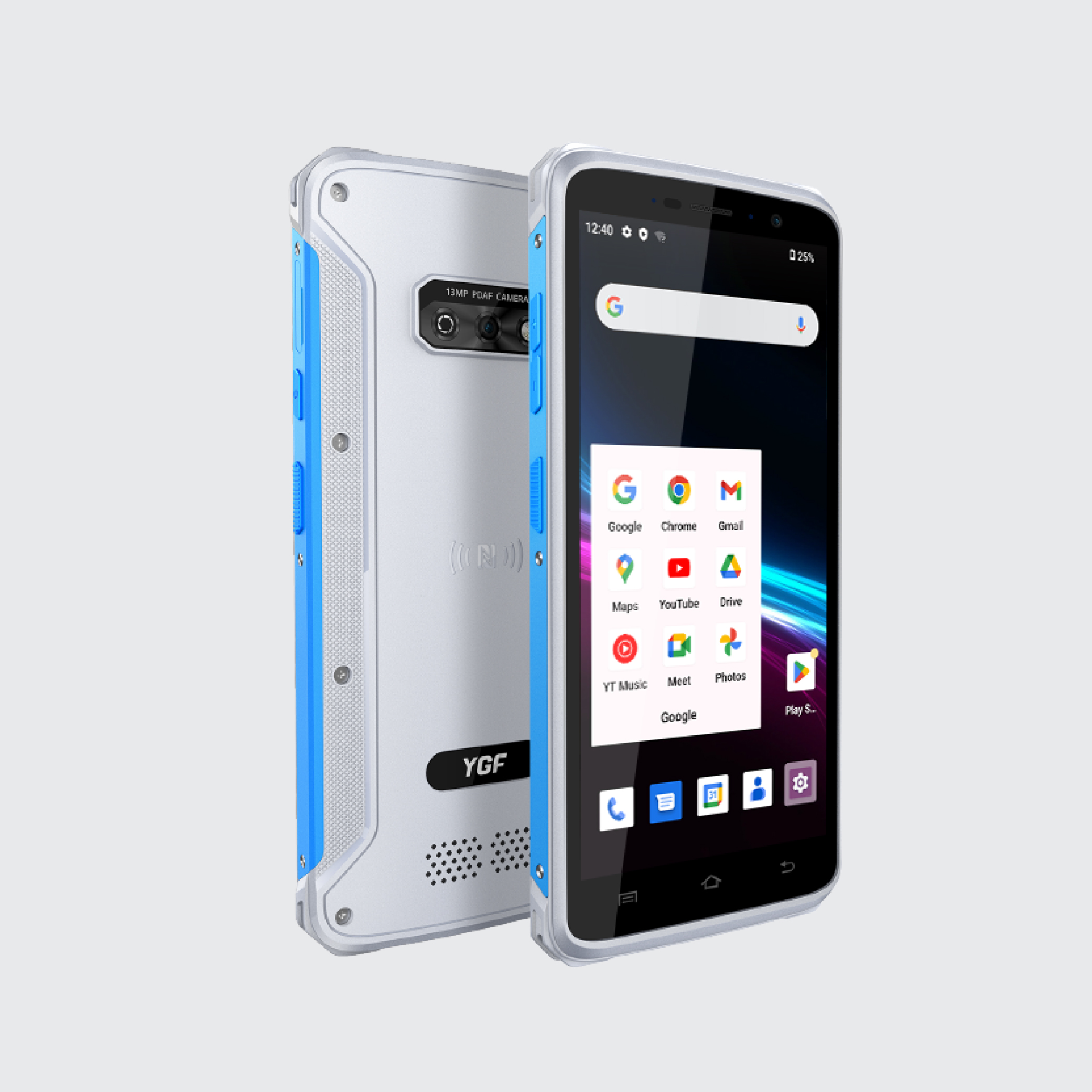

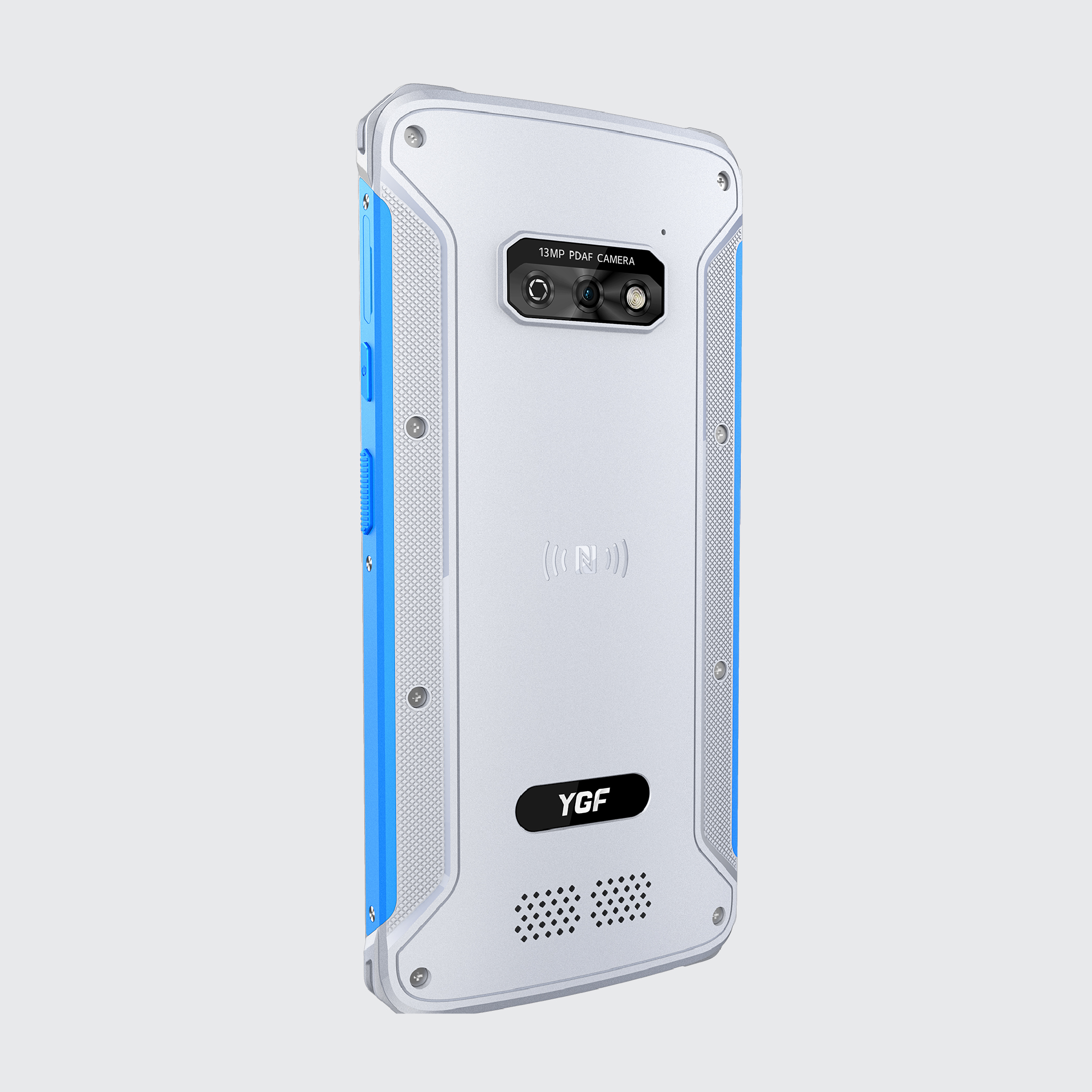

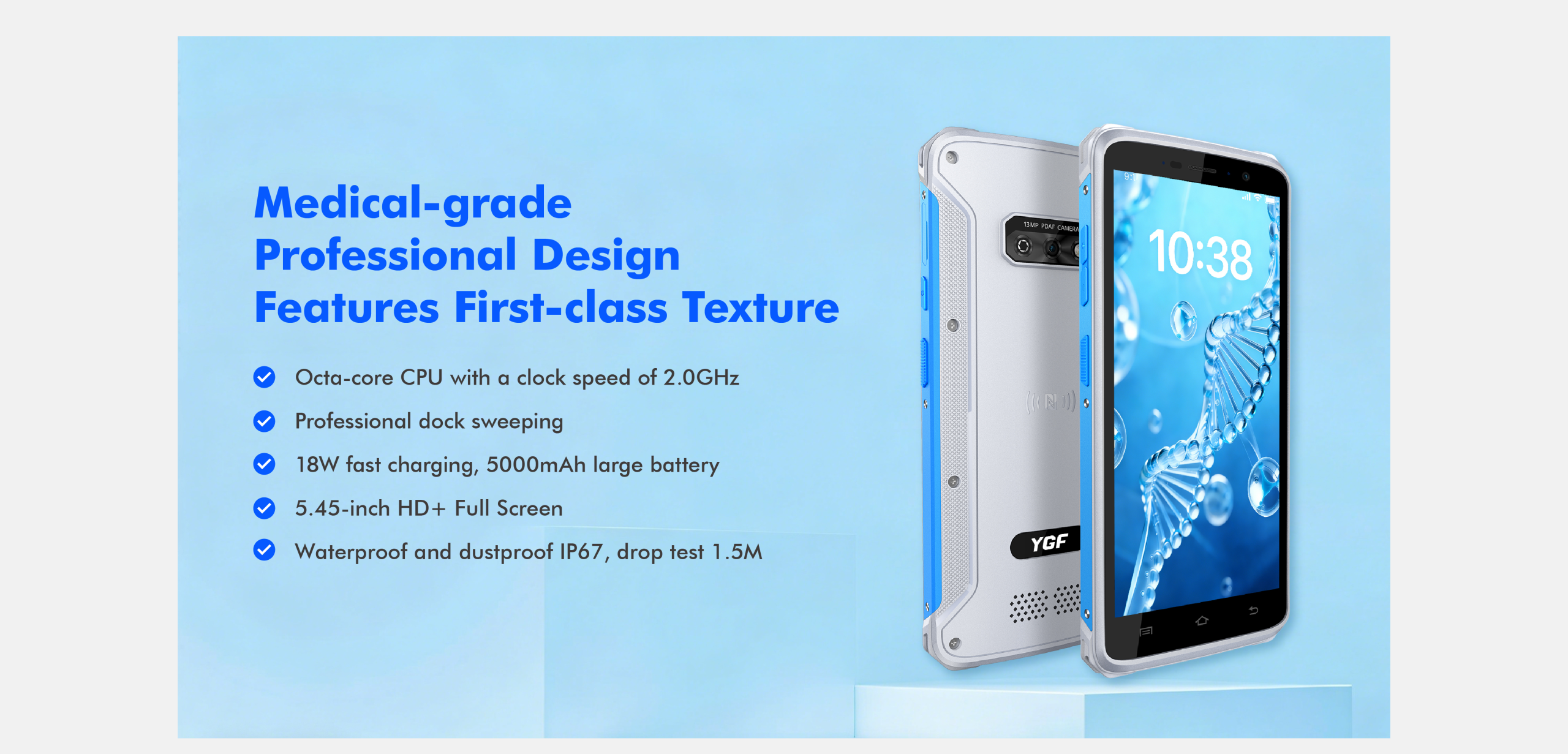

F20T MEDICAL Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure Android Medical-Grade Smart PDA
Optimized for Medical Environments & Clinical Workflows

Android 9 | 5.5” Display| 6GB RAM | 64GB ROM | IP65 | 1D/2D Barcode Scanner | 5000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design

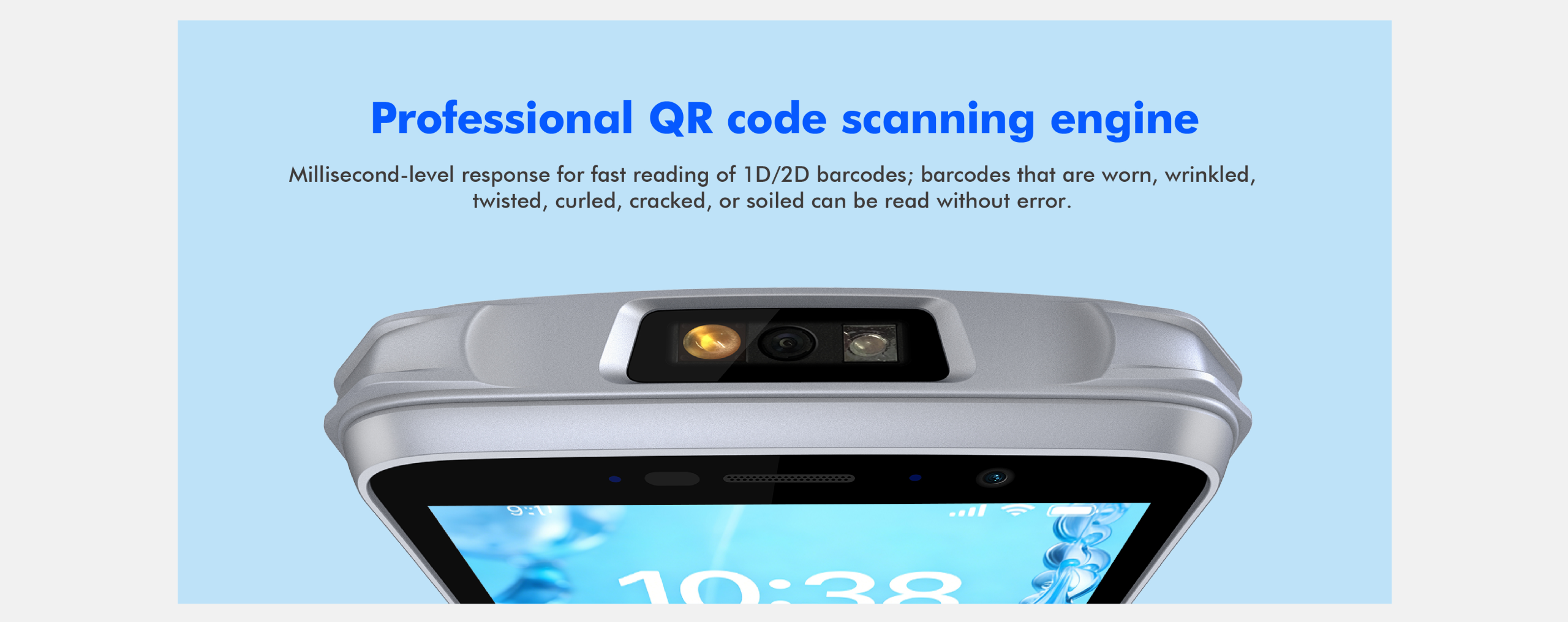

⭐ Powerful scanning performance

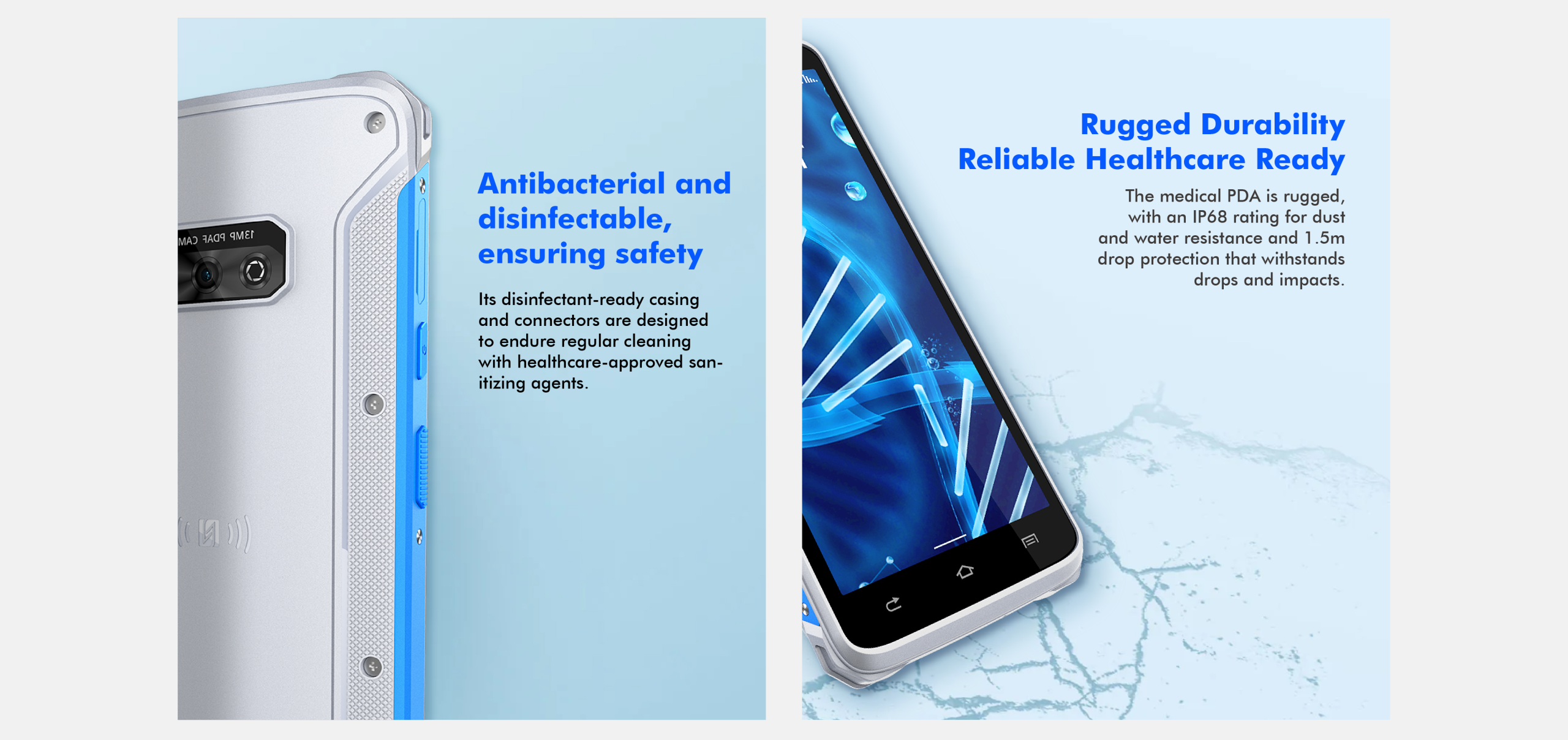

⭐ Antiseptic & antibacterial materials

FARSET-F20 Medical Model is a medical-grade PDA designed for hygienic environments, enabling fast patient identification, accurate barcode scanning, and reliable mobile workflows in hospitals and clinics

Get Quote

F20T MEDICAL Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure Android Medical-Grade Smart PDA
Optimized for Medical Environments & Clinical Workflows

Android 9 | 5.5” Display| 6GB RAM | 64GB ROM | IP65 | 1D/2D Barcode Scanner | 5000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design
⭐ Powerful scanning performance
⭐ Antiseptic & antibacterial materials

FARSET-F20 Medical Model is a medical-grade PDA designed for hygienic environments, enabling fast patient identification, accurate barcode scanning, and reliable mobile workflows in hospitals and clinics

Get Quote

F20T MEDICAL Mobile Computer (Industrial Rugged PDA)

Surge performance · Ultimate pleasure Android Medical-Grade Smart PDA
Optimized for Medical Environments & Clinical Workflows

Android 9 | 5.5” Display| 6GB RAM | 64GB ROM | IP65 | 1D/2D Barcode Scanner | 5000mAh

⭐ Super powerful octa-core CPU
⭐ Comprehensive upgrade of 5000mAh large battery
⭐ 18W fast charging · Lightweight design
⭐ Powerful scanning performance
⭐ Antiseptic & antibacterial materials

FARSET-F20 Medical Model is a medical-grade PDA designed for hygienic environments, enabling fast patient identification, accurate barcode scanning, and reliable mobile workflows in hospitals and clinics

Get Quote
Get Quote

Perfect performance    Fast running speed    Great intelligence

Features

Android 9

NFC (Optional)

BT 5.0

Wi-Fi Dual Band (2.4G / 5G)

SE6100-2D & Honeywell N6603 & Honeywell N6703

5.45” HD+ Display (720×1440)

13MP Rear Camera (Fill Light, PDAF)

IP65 Protection

1.5m Drop Resistance

5000mAh

Industy

Logistics & Warehousing

Retail

Medical

Public

Manufacturing

Details

F20T-DETAIL01
F20T-DETAIL
F20T-WHITE03
F20T-WHITE04

Specifcation

System Configuration

Processor : MT6762V/CA(Octa-core，2.0GHz)

Operating System : Android 9.0

Memory : 64 GB ROM+4 GB RAM(Standard)

Expansion Slot : Micro SD card (Up to 64GB SDHC）

Display : 5.45’，720*1440, HD+ 18:9，LTPS

Touch Panel : GFF 10 touch, Glove mode/Wet hand operation

Front Camera : 5MP（FF）

Rear Camera : 13MP, PDAF, with flash LED

Touch Glass : Tempered glass

Keypad : Three virtual keys : Menu , Home , Back; Physical keys : 1 power key, 2 scan keys, 1 volume keys(volume+/-)

Battery : Capacity : 5000mAh build-in lithium polymer battery，discharge temperature-20~60℃; Fast charge : 9V/2A

Speaker : Spec : 12*17*2.5（Dual speaker）

Prompt : Vibration prompt /LED prompt/audio prompt

Vibration : Built-in vibration motor

Sensor : G-sensor/Proximity sensor/Light sensor/ Gyroscope/geomagnetic sensor

Data Transmission

Wireless WAN (Network frequency）: GSM：B2/B3/B5/B8; CDMA/CDMA-EVDO：BC0; TD-SCDMA：B34/B39; WCDMA：B1/B8; TDD-LTE Bands：B34/B38/B39/B40/B41; LTE_FDD/TDD Bands：B1/B3/B8; CA: B3+B3  2CA；B1+B3 2CA

Wireless WAN (Data Service）: GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE

Wireless LAN : Wi-Fi 802.11 a/b/g/n/ac; (Dual-band：2.4GHz+5GHz)

Bluetooth : Bluetooth 5.0

GPS : Support GPS/AGPS/Glonass/BDS

NFC

Frequency : 13.56 MHz

Reading Distance : Within 2cm

Protocol : ISO14443A/ISO14443B

Special Feature : Support contactless CPU card, support 2 generation ID card read

Used Environment

Operating Temp : -20~55°

Storage Temp : -40~60°

Humidity :  0~95%

Drop Specification : Concrete1.5M

IP Grade : IP65

ESD : ±12 KV air discharge, ±8 KV conductive discharge

Structure Parameters

Dimension(LxWxD) : 158mm×76mm×13.7mm

Weight（g） : 227g

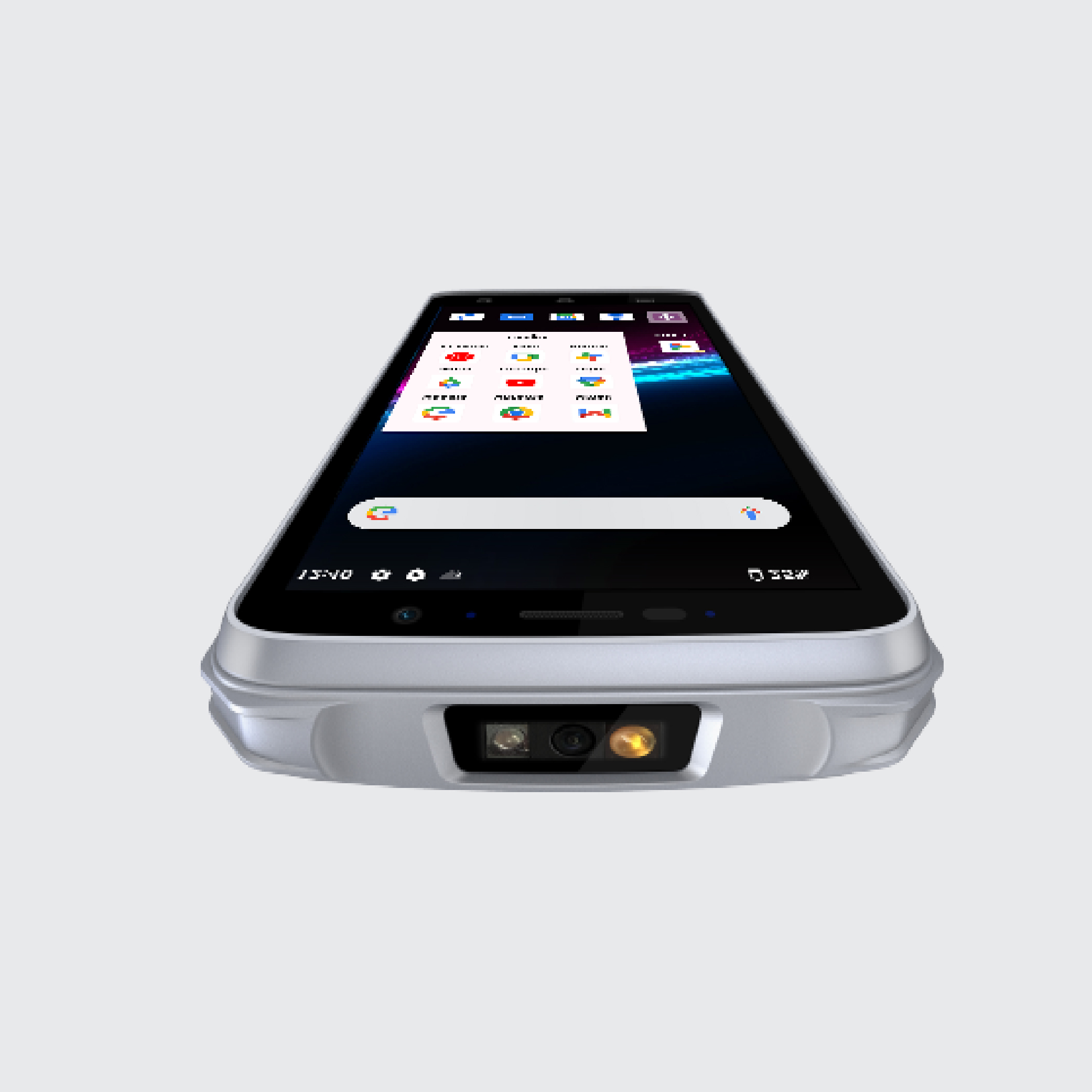

Scanning Engine

Scan engine :Professional scanner SE6100-2D; (Developed together with Zebra); Honeywell  scan Engine N6703

Optical resolution : 1280*800 pixes / 844*640 pixes

Scan precision : ≥3mil  , Code 39/128

Scan Angles : Tilt:360°，Pitch:±45°，Skew:±60°

Laser Safety Grade : Class II

Development Tool

Developing Tool : Android SDK

Supported language : Java

Accessories

Standard : Power adapter、USB cable、tempered glass screen protector

Input And Output Interface

USB Port : 1 PCS , Type-C USB waterproof port

Charger Port : 1 PCS , Type-C USB waterproof port

OTG : Support
